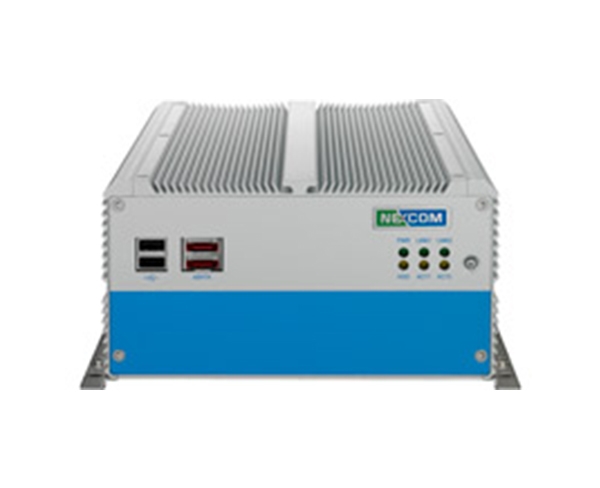

主板
|
-
NISB3500
-
板载可移动 Intel® QM57 平台控制中心
-
支持 Intel® Core™ i7-620M PGA 处理器 (2.66GHz, 4M Cache)
-
支持 Intel® Core™ i5-520M PGA 处理器 (2.4GHz, 3M Cache)
-
支持 Intel® P4500 PGA 处理器 (1.86GHz, 2M Cache)
|
|
内存
|
-
2x 240-pin DIMM 内存,可达 4GB DDR3 800/ 1066MHz SDRAM, 无缓冲 non-ECC
-
Note: Actual memory size is dynamic based on the OS I/O resource allocation
|
|
I/O 接口-前面板
|
-
ATX power on/ off switch
-
HDD Access/ Power status LEDs
-
2 x USB2.0 ports
-
2 x eSATA ports
|
|
I/O 接口-后面板
|
-
2-pin Remote Power on/ off switch
-
9~30V DC 输入
-
1 x PS/ 2 for Keyboard / Mouse
-
1 x DB15 male connector for GPIO (4x digital-input and 4x digital-output)
-
1 x DB44 Serial Port for 4x RS232 (COM2: RS232/ 422/ 485 with auto flow control)
-
2 x GbE LAN ports
-
4 x USB2.0 ports
-
1 x DB15 VGA port
-
1 x DVI-I port
-
1 x Speaker-out and 1x Mic-in
|
|
设置
|
|
|
扩展
|
-
2 x PCI 扩展 (Max. power consumption= 10w/ slot)
-
Add-on card length: 169mm max.
|
|
电源要求
|
-
ATX 电源模块
-
板载直流电源设计，支持9V~30V 电源输入
-
电源适配器可选
|
|
规格尺寸
|
-
195mm (W) x 268 mm (D) x 101mm (H) (7.7" x 10.5" x 3.98")
|
|
构造
|
|
|
环境温度
|
-
操作温度: Ambient with air flow: -5°C ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
-
存储温度: -20°C ~ 80°C
-
相对湿度: 10% to 93% (Non-Condensing)
|
|
认证
|
|
