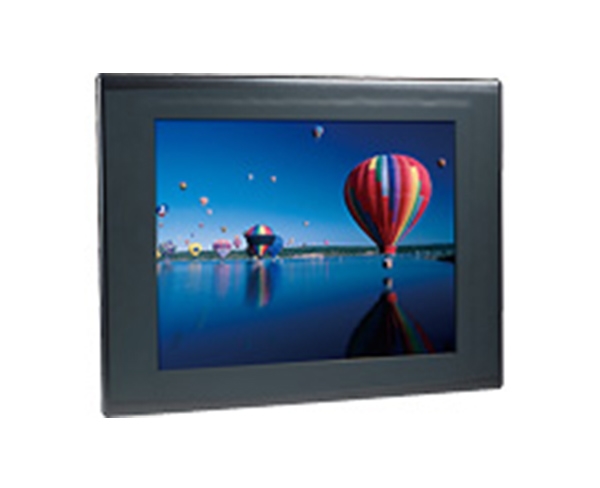

APPC 1510T1511T
Main Features
4:3 15" 无风扇 LED平板计算机
Intel? Atom? N270, 低功耗 CPU
完全统一的5线触摸屏
双千兆网; 第2路显示接口VGA
USB x4/2xmini-PCIE/1xCF/2x RS232/422/485, PS2 KB/MS
可选 WiFi模块, 2.5"HDD, 2xCOMs
DDR2 1GB; 2.5" HDD 支架.
IP65 防护前置
宽压输入:9V~36V
enlarge Specifications 面板 LED Size: 15", 4:3
Resolution: XGA 1024x768
Luminance: 350cd/m2
Contrast ratio: 400
Viewing angle: 55(U), 65(D), 65(L), 65(R )
Backlight:LED
Touch screen: 5-line Resistive
Touch light transmission: 80%
Touch interface: USB
系统 CPU: Intel? Atom? N270 1.6GHz
BIOS: Award 8M bit Flash BIOS
I/O chip: ITE8783
System memory: 1GB DDR2 support up to 2GB DDR2 400/533
SSD: One CF socket by IDE support Type I/II Compact Flash Card
Hard drive bay: Optional 2.5" SATA HDD or SATA DOM
Watchdog timer: Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W status monitor: Monitoring system temperature, and voltage
Expansion: 2x Mini-PCIe
后置 I/O接口 Serial port: 2xRS232/422/485(Isolation for APPC1211T)
Optional : 2xCOM(optional), DIO
Ethernet: 2xRJ45
2nd display: VGA port, 1xDB15
Audio port: Line out
USB: 4xUSB 2.0
PS2 Keyboard/Mouse
Power Switch
音频 AC97 cordec: Realtek ALC888
Audio interface: Connector: Line out
以太网络 LAN chip: Dual Intel 82574L Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Fast Ethernet compatible
机械构造&环境 Color: Pantone black U
IP protection: IP65 front
Mounting: Panel/Wall/Stand/VESA 100mmx100mm
Power input: 9V~36V
Power adaptor: Optional AC power adaptor(+12V)
Vibration: Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ SINE condition 2 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ Random condition 0.3 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis
Shock: IEC 68 2-27 CompactFlash?: 50 G @ wall mount, half sine, 11 ms HDD: 30 G @ wall mount, half sine, 16 ms
Operating Temperature: 0 to 45°C
Storage temperature: -20 to 75°C
Operating humidity: 5%~90% relative humidity, non-condensing
Dimension: 409x309x68mm
Weight: 5.0 Kg
4:3 15" 无风扇 LED平板计算机
Intel? Atom? N270, 低功耗 CPU
完全统一的5线触摸屏
双千兆网; 第2路显示接口VGA
USB x4/2xmini-PCIE/1xCF/2x RS232/422/485, PS2 KB/MS
可选 WiFi模块, 2.5"HDD, 2xCOMs
DDR2 1GB; 2.5" HDD 支架.
IP65 防护前置
宽压输入:9V~36V
enlarge Specifications 面板 LED Size: 15", 4:3
Resolution: XGA 1024x768
Luminance: 350cd/m2
Contrast ratio: 400
Viewing angle: 55(U), 65(D), 65(L), 65(R )
Backlight:LED
Touch screen: 5-line Resistive
Touch light transmission: 80%
Touch interface: USB
系统 CPU: Intel? Atom? N270 1.6GHz
BIOS: Award 8M bit Flash BIOS
I/O chip: ITE8783
System memory: 1GB DDR2 support up to 2GB DDR2 400/533
SSD: One CF socket by IDE support Type I/II Compact Flash Card
Hard drive bay: Optional 2.5" SATA HDD or SATA DOM
Watchdog timer: Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W status monitor: Monitoring system temperature, and voltage
Expansion: 2x Mini-PCIe
后置 I/O接口 Serial port: 2xRS232/422/485(Isolation for APPC1211T)
Optional : 2xCOM(optional), DIO
Ethernet: 2xRJ45
2nd display: VGA port, 1xDB15
Audio port: Line out
USB: 4xUSB 2.0
PS2 Keyboard/Mouse
Power Switch
音频 AC97 cordec: Realtek ALC888
Audio interface: Connector: Line out
以太网络 LAN chip: Dual Intel 82574L Gigabit LAN
Ethernet interface: 10/100/1000 Based-Tx Fast Ethernet compatible
机械构造&环境 Color: Pantone black U
IP protection: IP65 front
Mounting: Panel/Wall/Stand/VESA 100mmx100mm
Power input: 9V~36V
Power adaptor: Optional AC power adaptor(+12V)
Vibration: Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ SINE condition 2 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis Vibration Protection with Commercial SATA HDD only IEC 68 2-64 @ Random condition 0.3 Grms @ sine, 5 ~ 500 Hz, 1O ct./min, 1hr/axis
Shock: IEC 68 2-27 CompactFlash?: 50 G @ wall mount, half sine, 11 ms HDD: 30 G @ wall mount, half sine, 16 ms
Operating Temperature: 0 to 45°C
Storage temperature: -20 to 75°C
Operating humidity: 5%~90% relative humidity, non-condensing
Dimension: 409x309x68mm
Weight: 5.0 Kg
